Product Description

How it Works (Step-by-Step):

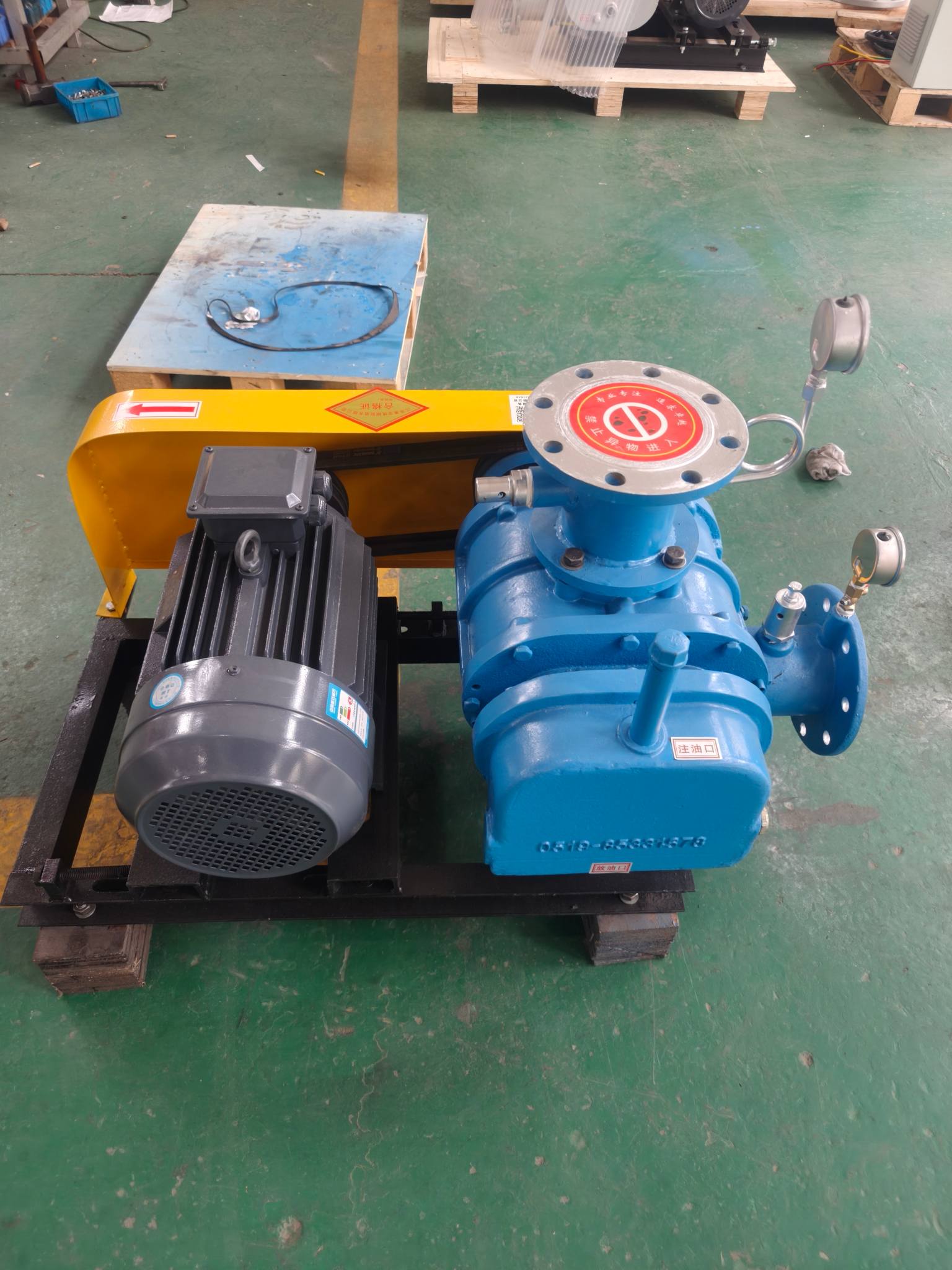

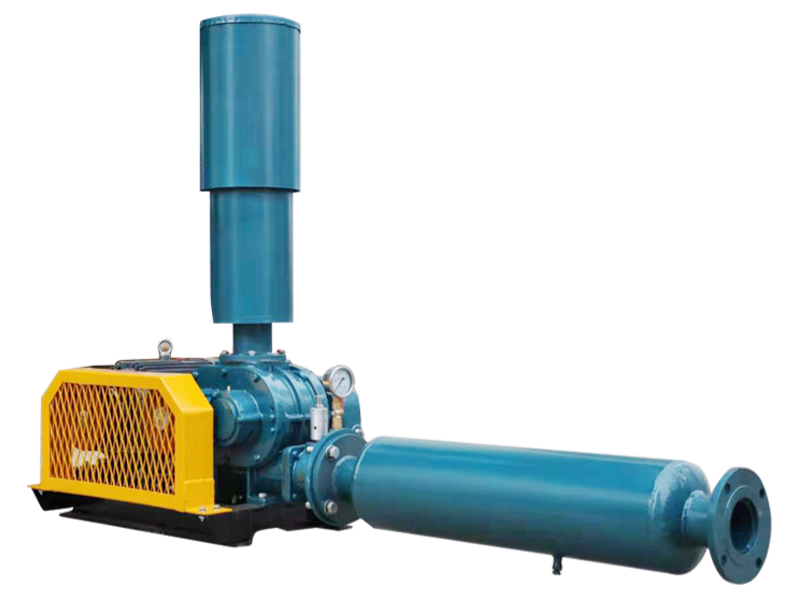

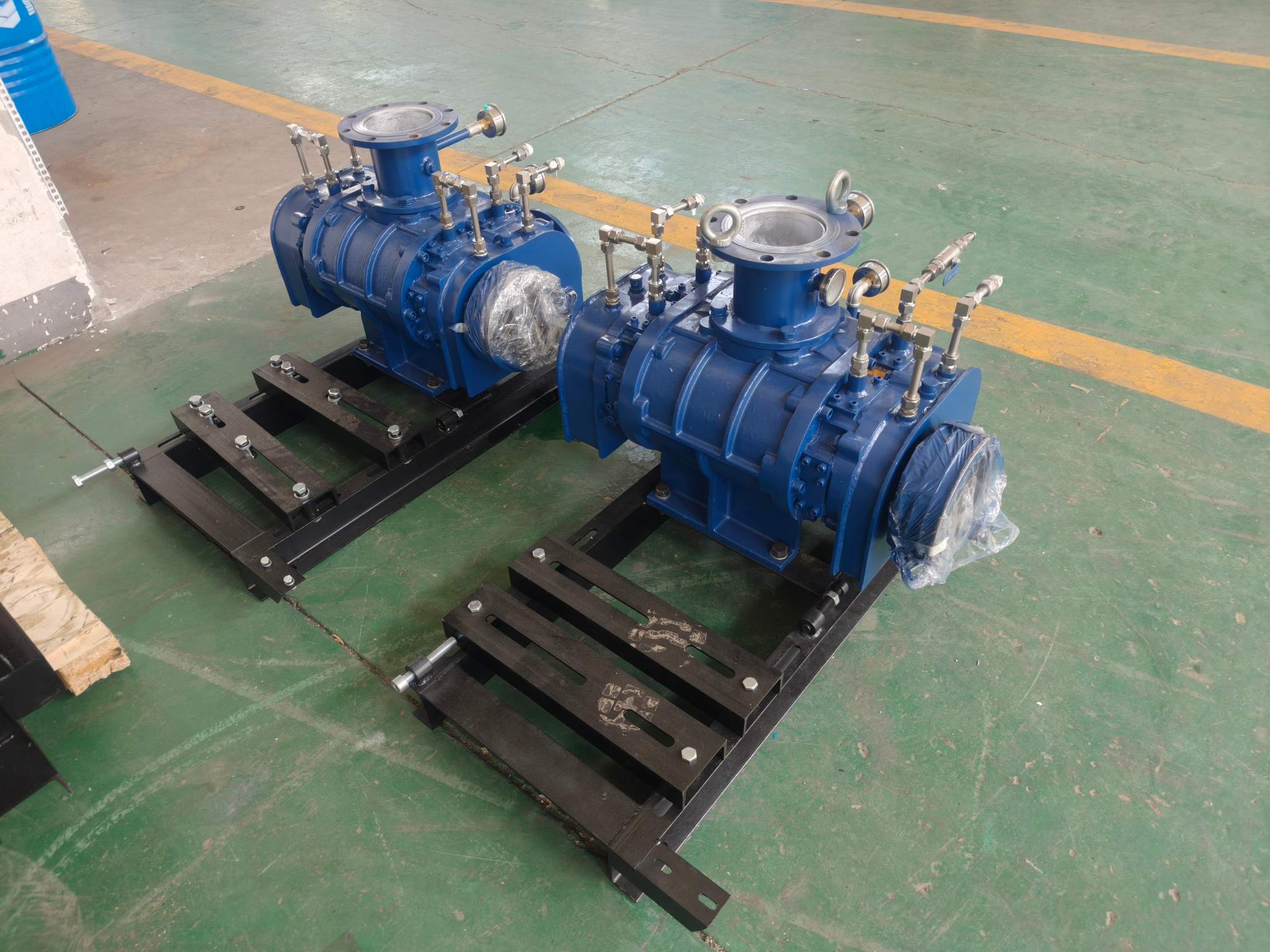

Double oil tank three -lobe Roots blower is a Positive displacement blower

There are two impellers on the two parallel shafts. There are some tiny gap between impeller to body casing ,impeller to impeller.

The impellers rotate in opposite direction, a certain air will be sucked in at inlet port and transferred to blower’s outlet port. Each impeller always keeps the correct phase by the synchronous gears, not touching each other. So they can rotate at high speed without any lubrication inside. And it is simple structure, running smoothly, performance stabilization.

Suction (Inlet): As the lobes rotate, they create a vacuum, drawing air or gas in from the inlet port.

Trapping: The gas gets trapped in pockets between the lobes and the casing wall.

Transfer: The rotating lobes mechanically carry this trapped volume of gas around the casing to the discharge side.

Discharge (Outlet): At the outlet, the gas is pushed out against the system's pressure, but since there's no internal compression chamber, it's expelled at near-atmospheric pressure, creating a steady, pulsed flow.

Features

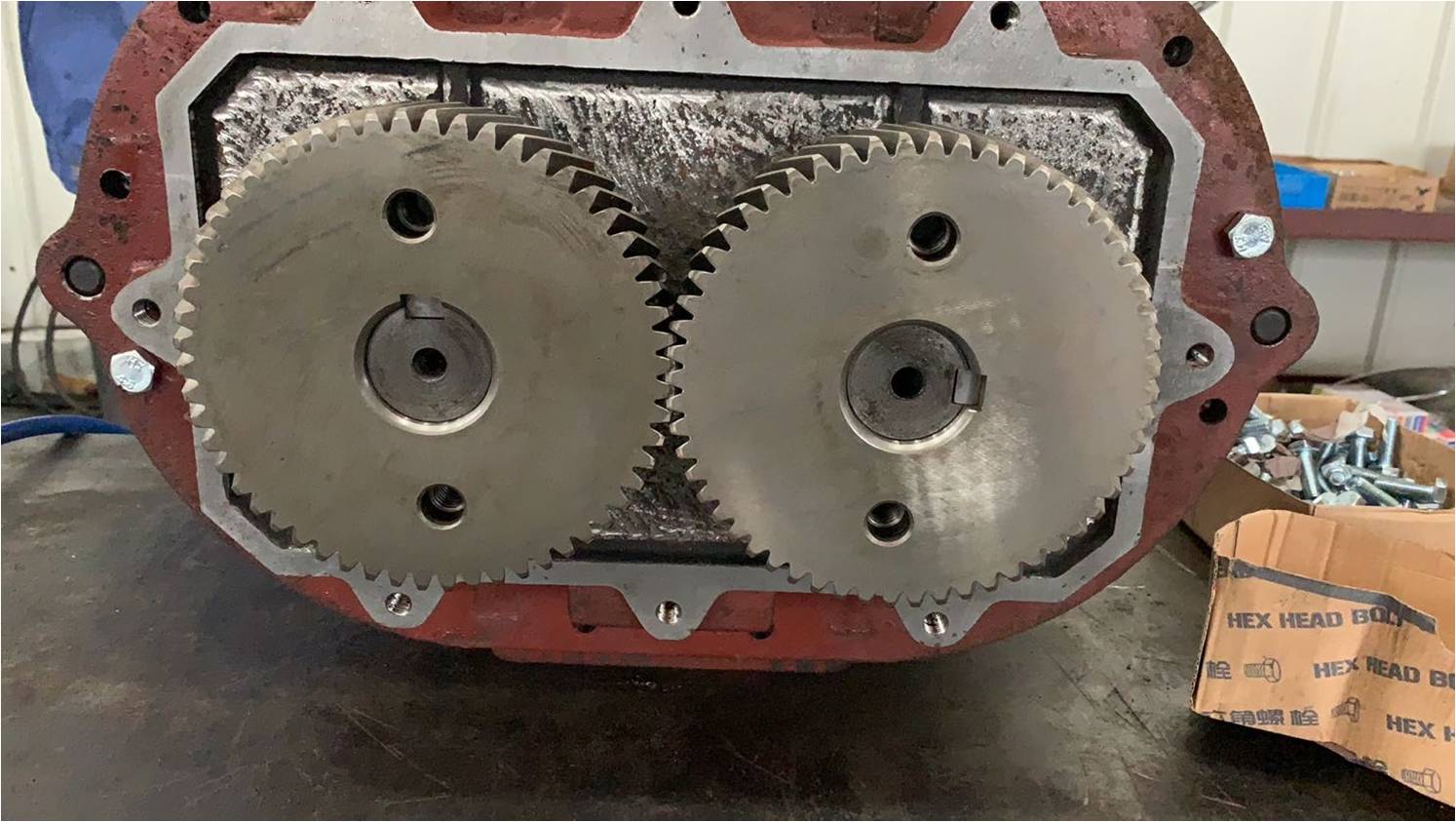

1) Helical synchronous gear: smooth operation and low noise.

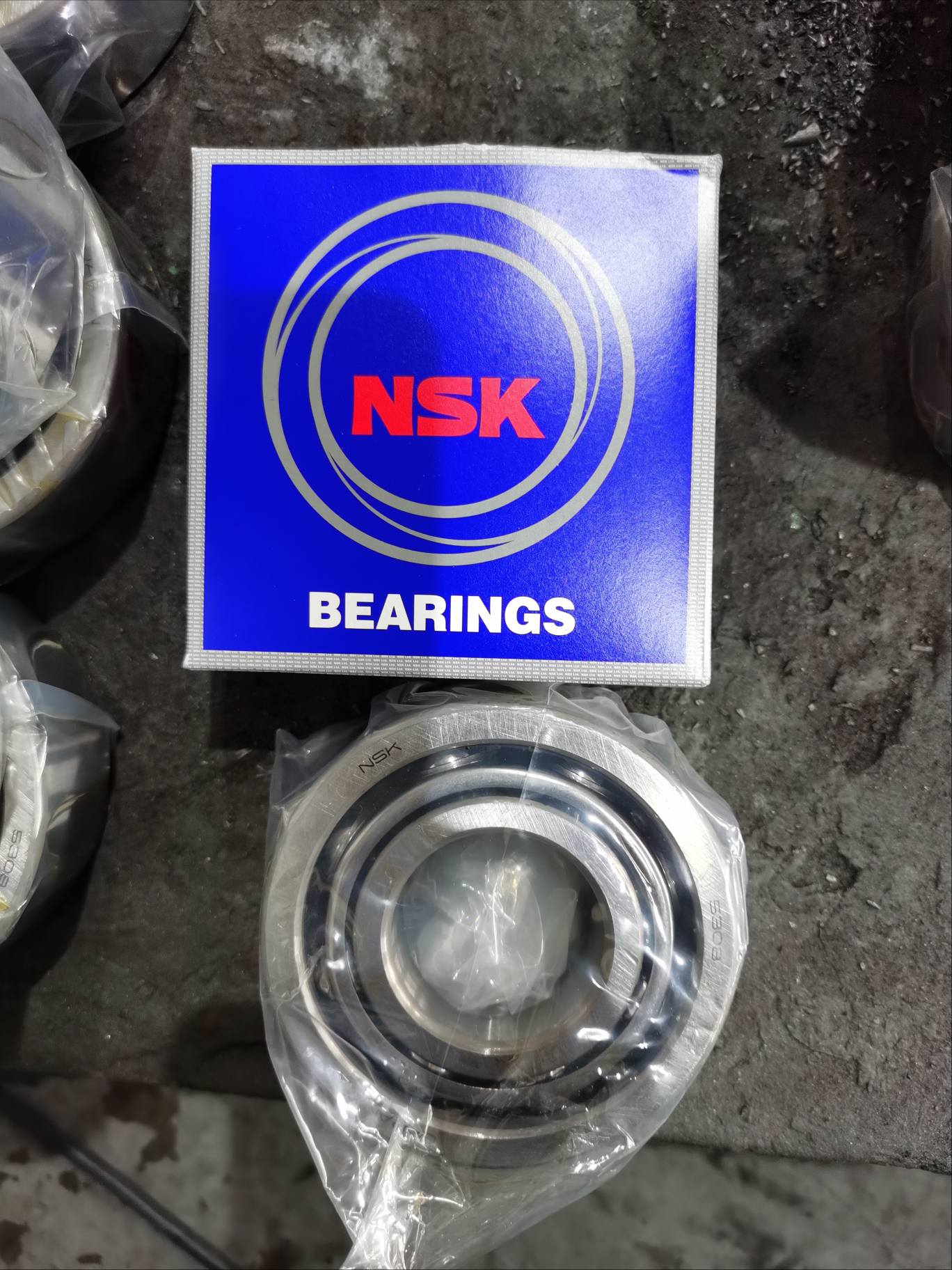

2 ) SKF or NSK bearing.

3) The oil seal is used CR seal imported from USA.

4) Cooling way is air-cooling and water-cooling.

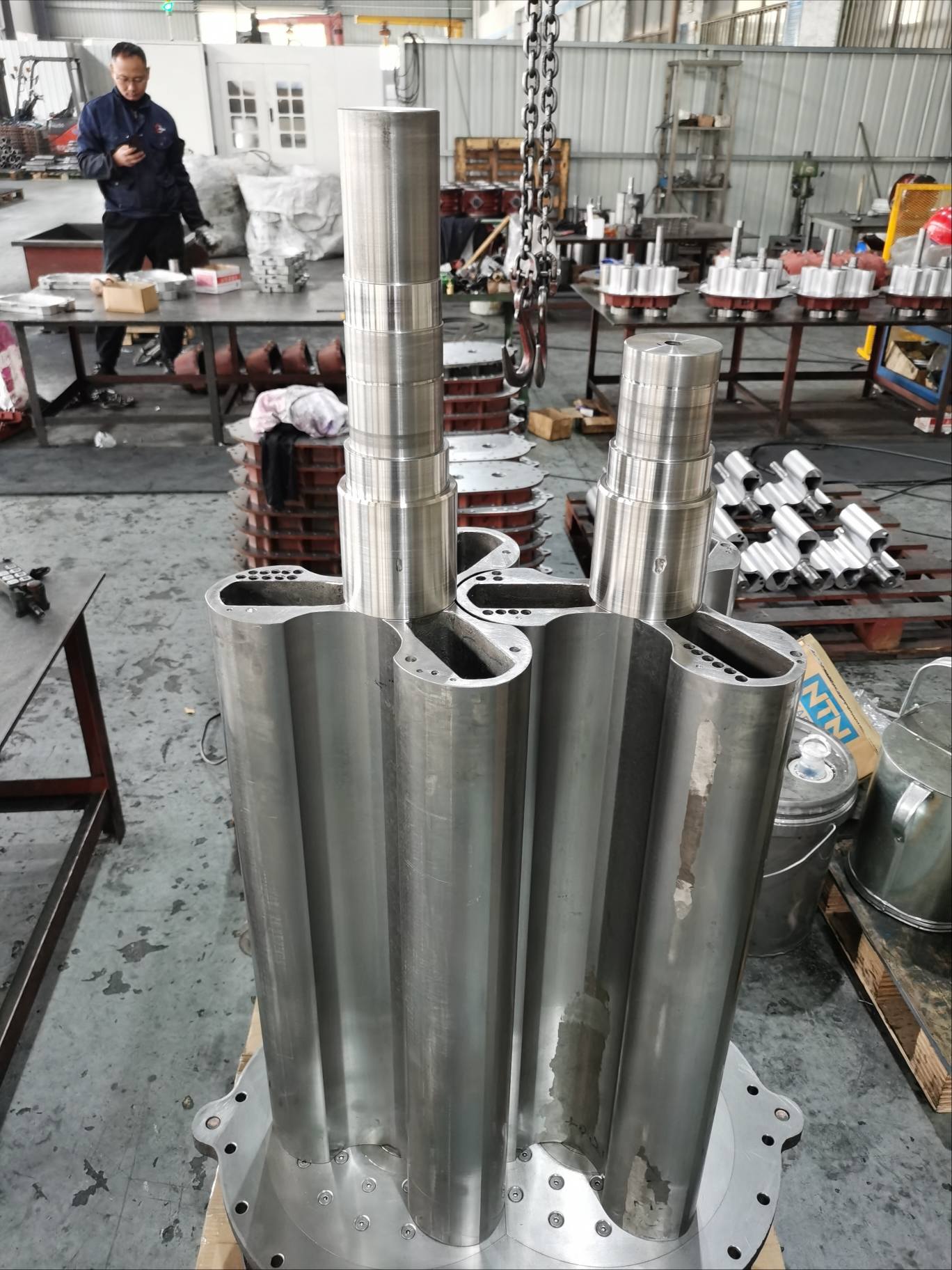

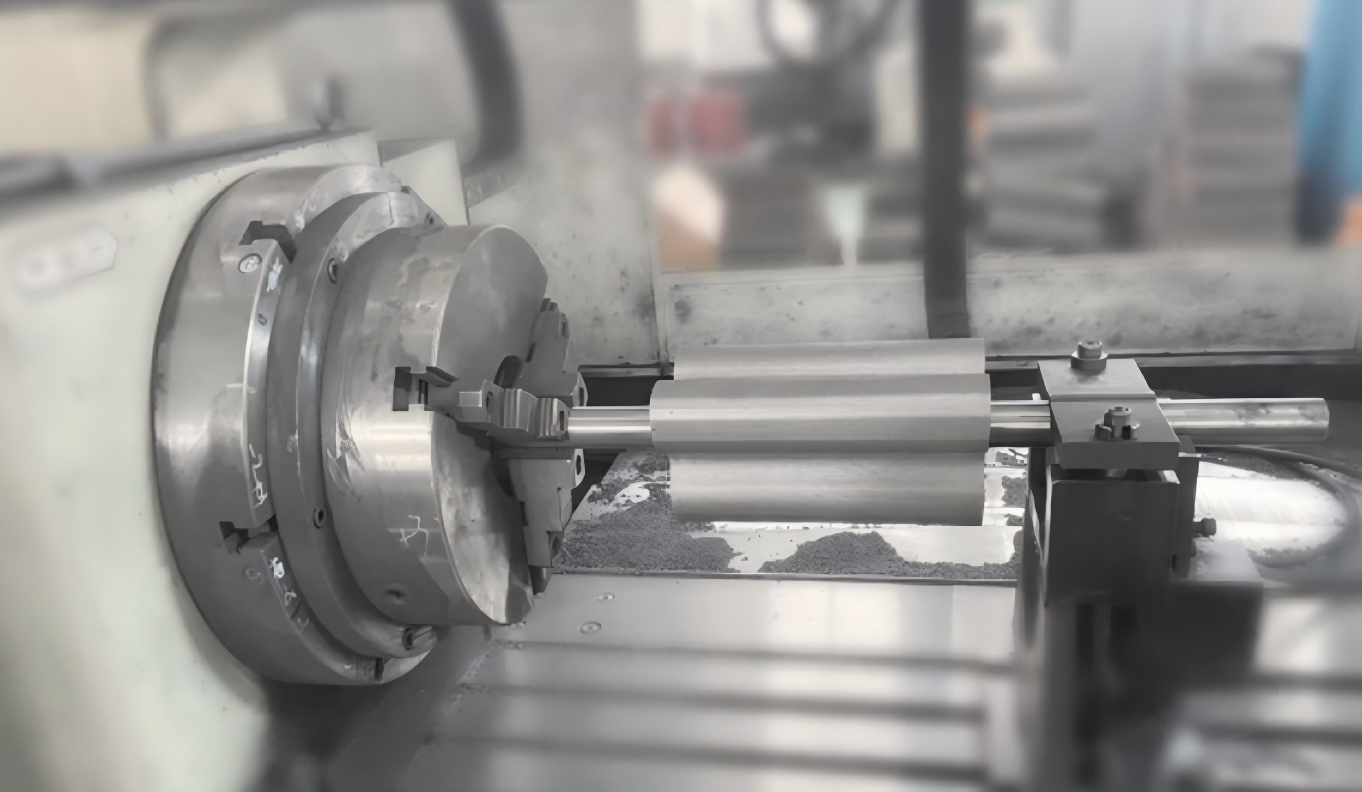

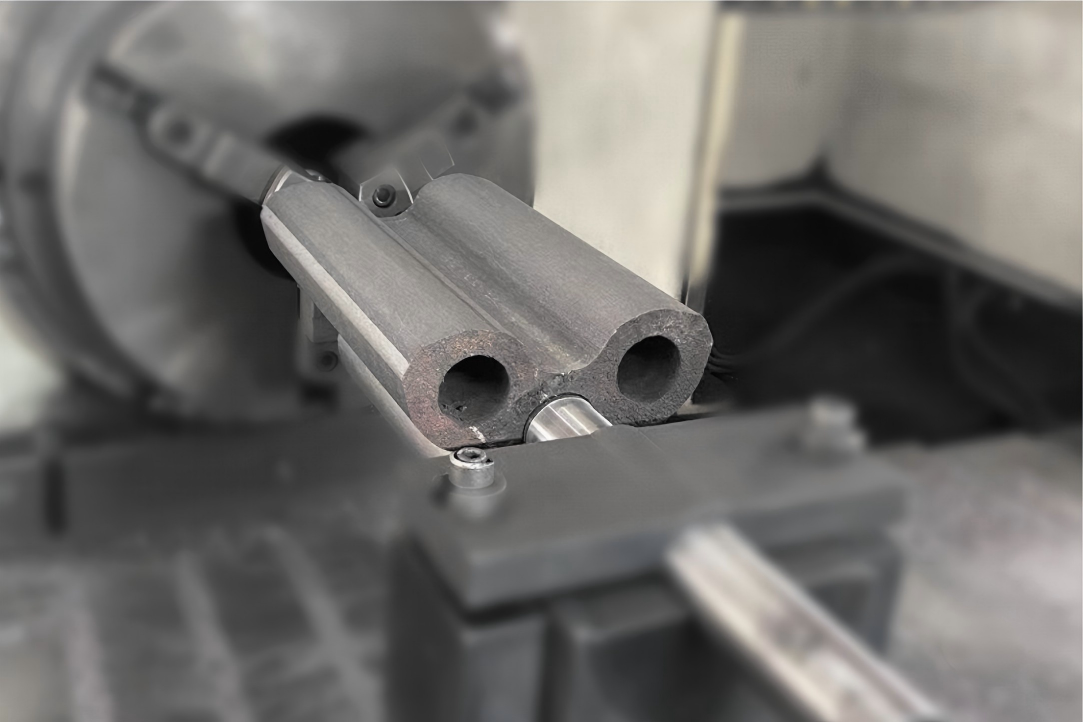

5) The impeller uses the impeller & shaft integrated structure , high accuracy.

6) Compact structure, the same inlet and outlet impeller structure, flexible installation.

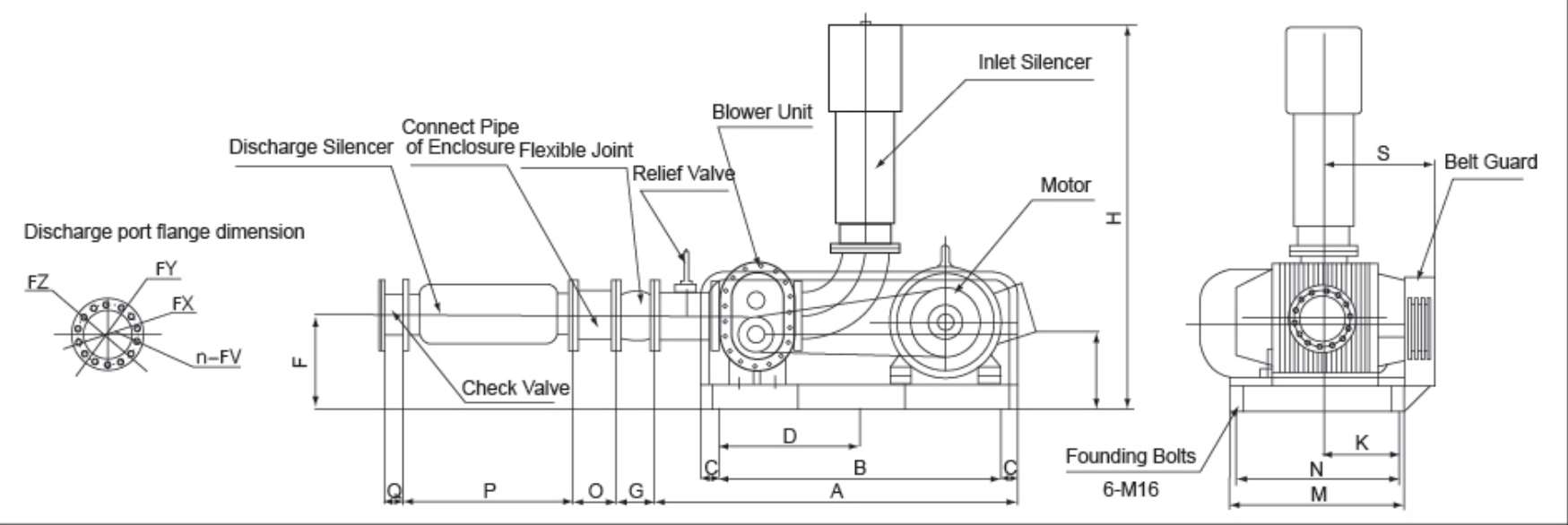

7) There are various installation ways. The air blower can be installed into horizontal air inlet and vertical air inlet using the same bottom base frame.

8) It can also change the position of the drive shaft, right shaft or left shaft drive, upper shaft or lower shaft drive.

9) Double oil tanks structure, splash lubrication is used on the gear end and the drive end which improves the better heat dissipation, and also improves the better lubrication effect of the bearing and gear.
